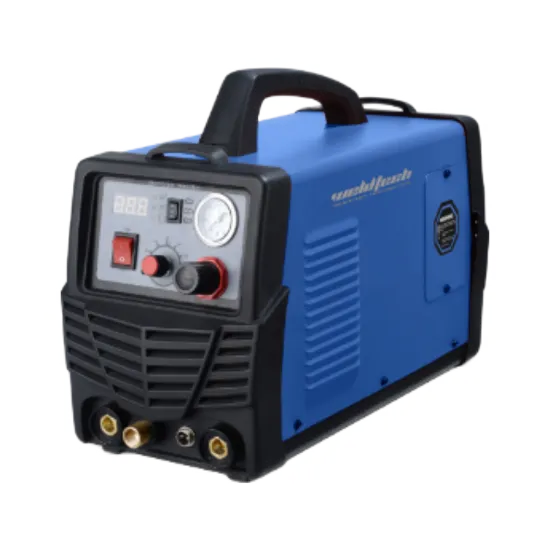

ATP160

160A Arc/Tig/Plasma Inverter Welding Machine

The perfect multi-process welder for MMA/TIA and plasma cutting tasks around the workshop!

Powerful- 160A TIG. 140A MMA. 30A plasma output current- welds up to 6mm- cuts up 8mm
Portable- At 18Kg this machine is portable and robust
Reliable- Cutting edge IGBT Inverter Technology

Perfect choice for projects around the home, small workshop, and auto-repair tasks
Combination 3-in-1 for ultimate-convenience
Advanced IGBT technology, synergic controlled, very easy, precise and simple operation
Featured wave-form control system: perfect wave from of volts and amps during short circuits
and Arc burning cycles
Automatic input voltage fluctuation controller, over-voltage protection, under voltage
protection, over current protection, overload protection
Automatic temperature control, fan on demand function
Generator optimised
10A Plug - Ideal for home & workshop power supplies
18 Month Trade Warranty
Comes with ARC & Earth leads, TIG & Plasma Torch, Argon Regulator

Attribute name	Attribute value
Dimensions	220 x 465 x 330mm
Weight	18kg
Input Power Supply	230V AC 10A 50/60Hz
Input Power Supply tolerance	58V
Maximum Input Current	10A
Generator Capacity	7kVA
MMA Output Current	15-140A
MMA Duty Cycle	140A@25%,70A@100%
TIG Current Output	15-160A
TIG Duty Cycle	160A@50%, 112A@100%
Plasma Cut Capacity	6mm Steel, 8mm Severance
Welding Thickness	6mm
MMA Rod Size	1.6-3.2mm
Insulation Class	IP21
Power Efficiency	0.85
Power Factor	0.93
Standards	EN60974-1:2012
Warranty	12 months
